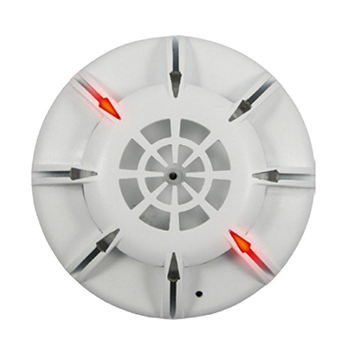

Đầu báo nhiệt ZETA MKII-HR

Đầu báo nhiệt ZETA MKII-HR
– The Fyreye MkII optical smoke detectors use a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber.
– The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).
– The Fyreye Rate of Rise heat detectors (MKII-HR) use a thermistor arrangement to sense a quick rise in temperature and also a final threshold temperature of 57°C.
– Operating Voltage: 9-33VDC.
– Quiescent Current: 40μA.
– Coverage: 50m².
Thông số kỹ thuật

Model

MKII-HR

Detector Class

Rate of Rise & Fixed Heat Detector

Design Standard

EN54 part 5

Approval

DIFT

Operating Voltage

9-33V DC

Quiescent Current

40μA

Alarm Current @ 24V DC

34mA

Operating Temperature

-10°C to +50°C

Minimum Continuous Temperature

0°C

Maximum Humidity

95% RH non-condensing

Alarm Condition

Rate of rise or fixed cheat trigger @ 57°C

Coverage

50m²

IP Rating

IP43

Start-up Time

10 Seconds

Size (with Base)

100 x 48 mm

Weight (with Base)

75g (133g)
