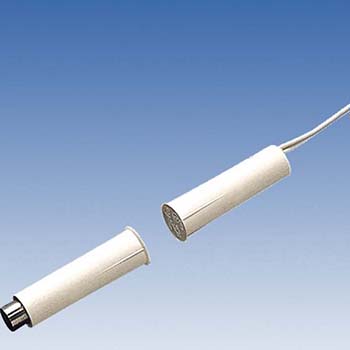

Công tắc từ TAKEX AWS-21

Công tắc từ TAKEX AWS-21

– Embedded magnet switch that demonstrates its power when you want to install it in an invisible place.

– Since the magnetic force is strong and the set distance is long, it is suitable for doors with a wide distance from the frame.

– Do not use the product directly attached to a magnetic material.

Thông số kỹ thuật

Model

AWS-21

Operating distance

30mm or less (between magnet and switch)

Contact operation

Non-voltage contact (b contact) When magnet is close: Closed when magnet is separated: Open

Contact rating

Contact capacity: AC / DC30V, 0.1A (resistive load)
Contact resistance: 150mΩ or less
Opening and closing life: 1 million times (rated load)

Installation method

Indoor: Embedded installation

Wiring connection

Lead wire connection type

Mass

Approx. 16 g (total magnet and switch)

Appearance

Resin (gray)
