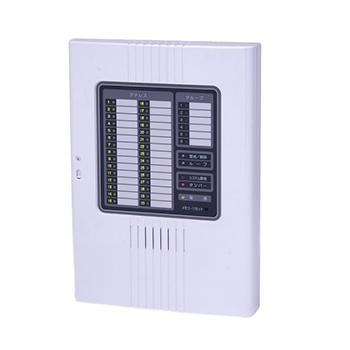

Bộ điều khiển báo động địa chỉ BUSNET TAKEX BUS-C630-3

Bộ điều khiển báo động địa chỉ BUSNET TAKEX BUS-C630-3

– Set the address from 1 to 30 with the switch installed in the terminal device. After that, you can manage and operate individual output, group output from 1 to 6, and memory display only by registering and setting on the controller side. Even if there is an on-site layout change, everything can be changed easily on the controller side, so operation flexibility can be maintained.

– Xuất xứ: Nhật Bản.

Đặc tính kỹ thuật

Part number

BUS-C630-3

Power-supply voltage

10.5 to 28 VDC (with polarity)

Current consumption

700mA

Number of terminals that can be connected

30 units

Transmission method

Bus net method (time division multiplex transmission method)

Wiring length

Maximum length: 1000m
Branch: No restrictions (1000m or less)
Total wiring length: 4000m
(When using φ0.9mm AE wire (OP wire))

Transmission speed

About 8-16msec / 1 unit

Communication contents

Controller → Terminal: Indicator light control, loop status, warning status
Terminal → Controller : Normal, alarm, tamper, voltage drop, equipment error
Address (1 to 30)

input

Warning / release input (a contact / b contact switching type)

output

Group alarm output (1 to 6) Loop output, system error output, tamper output
Non-voltage semiconductor contact a contact / b contact batch switching
AC / DC 30V / 0.25A

Indicator (display panel)

Address number indicator (1 to 30): green
address warning indicator (1 to 30): Red
Group – up warning indicator (1 to 6): red
alert / cancellation indicator: red / green
Lumpur – flop indicator: Green
System error indicator: Red
Tamper indicator: Red
Power indicator: Green

Memory-backup

Yes

Wiring connection

Power supply, bus line: M4 self-up terminal
Other than above: M3 self-up terminal

Usable ambient temperature

-15°C to + 55°C (no condensation)

Installation location

Indoor (wall mounted)

mass

1,400g

appearance

Resin (white)
