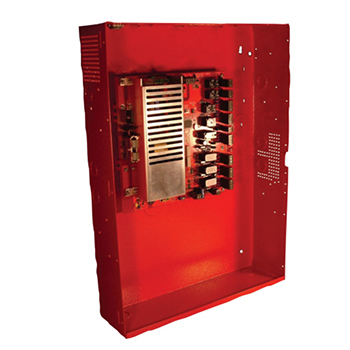

Bộ điều khiển chuông tích hợp nguồn Bosch FPP-RNAC-8A-4C

Thông số kỹ thuật: Bộ điều khiển chuông tích hợp nguồn Bosch FPP-RNAC-8A-4C

emperature (operating)

+32°F to +120°F (0°C to +49°C)

Response Time (input to output)

10 ms maximum

Color

Red

Dimensions (HxWxD)without door

20.4 in. x 14.8 in. x 4.1 in. (52 cm x 38 cm x 10.4 cm)

Material

cold-rolled steelBase: 18 gauge (1.2 mm)Cover: 19 gauge (1.1 mm)

Current (output)

850 mA maximum

Voltage (output)

24 VDC (regulated)

Output per circuit

2.5 A maximum

Output (total)

8 A (all NAC and auxiliary outputs)

Voltage (output)

24 VDC (regulated)

Voltage (standby)

-24 VDC (regulated)

Compatibility range

19.6 VDC to 27.5 VDC

Current (output)

1.3 A maximum

Voltage (output)

24 VDC nominal

Voltage (ripple)

250 mVp-p

Contact Type

Form C

Rating (contact)

1.5 A at 32 VDC

Current (input)

4.5 A maximum (RMS)

Power (primary input)

120 VAC, 60 Hz or 220 VAC, 50 Hz

Voltage (battery)

24 VDC nominal
