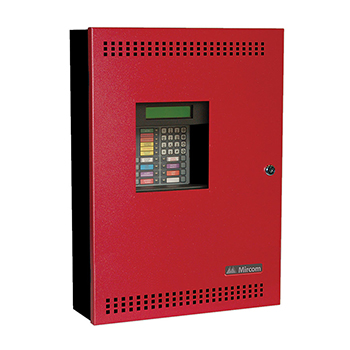

Trung tâm báo cháy địa chỉ Mircom FX-350

Trung tâm báo cháy địa chỉ Mircom FX-350
Intelligent Addressable panels that supports 60, 126 or 378 addressable points
Points can be any combination of Addressable Sensors or Modules
Supports Photoelectric Sensors, Variable Heat Sensors and Multi–Sensor (Heat/Photo)
Equipped with a 2 line by 20 character backlit LCD display, numerical keypad and an integrated UDACT/Digital Communicator
LCD display allows for 32 characters to be configured for user defined messages
Digital Communicator can be configured for DACT or UDACT mode of operation
Configurable via the front panel, PC Configurator, or remote dial up through the built-in modem
Sensors can be configured as Alarm, Verified Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble-Only
Modules can be configured as Alarm, Latching Supervisory, Non-Latching Supervisory, Water Flow, Monitor, Trouble, Fire Drill Switch, Signal Silence Switch, Aux Disconnect
Switch and Buzzer Silence Switch
Base panel is equipped with Four Class “B” (Style “B”) indicating circuits which may be configured as Class “A” (Style “Z”) using a Class “A” signal converter module
Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes
Built-in sync protocols for the following strobe manufacturers: Mircom, Amseco, System Sensor, Gentex, Faraday and Wheelock
Relay contacts for Common Alarm, Auxiliary/Alarm (Disconnectable), Common Supervisory and Common Trouble
Configurable Signal Silence Inhibit, Auto Signal Silence and One-Man Walk Test
Subsequent Alarm, Supervisory, and Trouble operation
RS-485 Interface for Remote LED and LCD Annunciators
Positive Alarm Sequence
Interface for a Remote Trouble Indicator (RTI-1)
Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events
5.5 Amp Power Supply
Optional modules for additional internal relay circuits and City Tie/Polarity Reversal
Optional trim ring for semi-flush mounting
