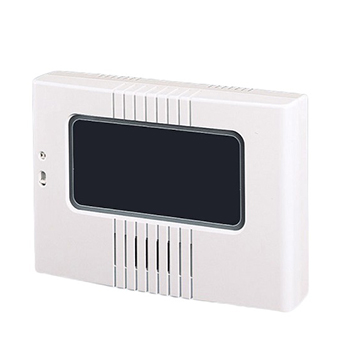

Repeater TAKEX BUS-RT1A

Repeater TAKEX BUS-RT1A

– By connecting the controller to the terminal device, it is possible to extend 1,000m (total wiring 4,000m). In addition, since up to three repeaters can be connected in series, the maximum distance between the controller and the final terminal is 4,000m.

– Applicable models are BUS-C630-2, BUS-C630-3, BUS-C730-3, BUS-C800.

– Xuất xứ: Nhật Bản.

Đặc tính kỹ thuật

Power-supply voltage

Number of connections on the bus line terminal side: 30 or less 10.5 to 28 VDC (with polarity)
Number of connections on the bus line terminal side: 31 or more, 20 to 28 VDC (with polarity)

Current consumption

150mA + [Number of bus line terminals] x 3.5mA

Number of terminals that can be connected

Compliant with connection controller

Transmission method

Bus net method (time division multiplex transmission method)

Wiring length (terminal side)

When using Φ0.9mm AE wire (OP wire)
Longest part: 1000m
Branch: No restriction (1000m or less)
Total wiring length: 4000m

Transmission speed

About 8-16msec / 1 unit

Indicator light

Power indicator: Energized: Green light

Wiring connection

M4 self-up terminal

Usable ambient temperature

-15°C to + 55°C (no condensation)

Installation location

Indoor (wall mounted)

mass

600g

appearance

Resin (white)
