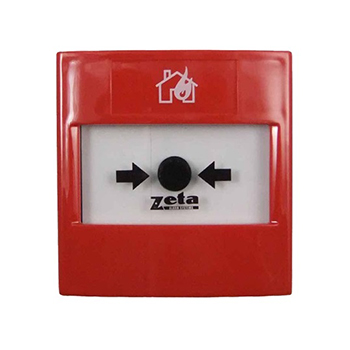

Nút nhấn khẩn ZETA ZT-CP3

Nút nhấn khẩn ZETA ZT-CP3
– The ZT-CP3 call points is unique in that they mimic the feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element.
– EN54-11 approved
– IP Rating: IP32.
– Glass appearance maintains operator deterrence.
– Positive activation that mimics the feel of breaking glass.
– Visible warning flag confirms activation.
– Simple key to reset operating element (no broken glass).
– Complete functional test with every activation.
Đặc tính kỹ thuật: Nút nhấn khẩn ZETA ZT-CP3

Model

ZT-CP3

Current Rating

(All Series) 3 Amps 12 – 24V DC
(Series 02-04 & 11) 3 Amps 125 – 250V AC

Low Current Rating (All Series)

1-100 mA 5 – 12V DC
0.1 Amps 125 – 250V AC

Housing and Mounting Box Material

Polycarbonate

Electrical Contact Material

Silver plated brass

Operating Temperature

-20 degrees C to +65 degrees C

Installation Terminal Conductor Size

0.5mm – 2.5mm

Colours

Red, Yellow, Green, Blue & White

Mounting

Flush or surface with back box

IP Rating

IP32
