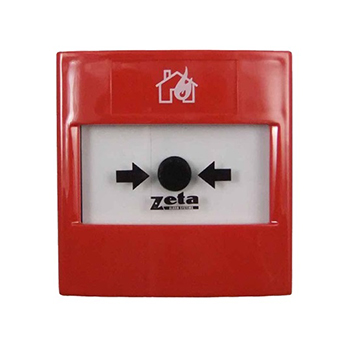

Nút nhấn khẩn địa chỉ ZETA ZT-CP3/AD

Nút nhấn khẩn địa chỉ ZETA ZT-CP3/AD
– The ZT-CP3/AD addressable call point is unique in that they mimic the feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element.
– EN54-11 approved.
– IP Rating: IP32.
– Glass appearance maintains operator deterrence.
– Positive activation that mimics the feel of breaking glass.
– Visible warning flag confirms activation.
– Simple key to reset operating element (no broken glass).
– Complete functional test with every activation.
– Available in two colours.
Đặc tính kỹ thuật: Nút nhấn khẩn địa chỉ ZETA ZT-CP3/AD

Model

ZT-CP3/AD

Input Voltage

17-28V DC

Element Type

Resettable

Quiescent Current

450µA Maximum

Alarm Current

2.3mA Maximum

Operating Temperature

-20 degrees C to +60 degrees C

Max Humidity

95%RH Non-Condensing

IP Rating

IP32

Size (W x H x D mm)

87 x 87 x 23
