Máy phân bổ bọt áp suất cân bằng chữa cháy foam

Máy phân bổ bọt áp suất cân bằng chữa cháy foam

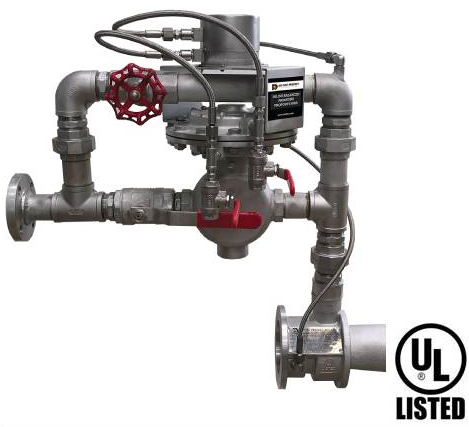

• Inline Balance Pressure Foam Proportioner (ILBP) is used with positive displacement foam concentrate supply pump. The system controls accurate flow of foam concentrate into the water stream over a wide range of flow rate and pressure.
• ILBP is used for simultaneous operation of the multiple foam injections even with different pressures between the two injection points with a single concentrate supply line. Various sizes of inline balance pressure proportioners can be combined to suit the flow requirement of each hazard area. Inline Balance Pressure Foam Proportioner is UL Listed.

Description

• Bronze or Stainless steel material with Stainless Steel trims
• 65, 80, 100, 150 & 200 mm size (2½”, 3″, 4″, 6″ & 8″) with flow ranging from 180 to 17400 lpm
• Working pressure 2.8 to 14 bar (40 to 200 psi)

Download catalogue:

• File Catalogue Inline Balanced Pressure Foam Proportioner
