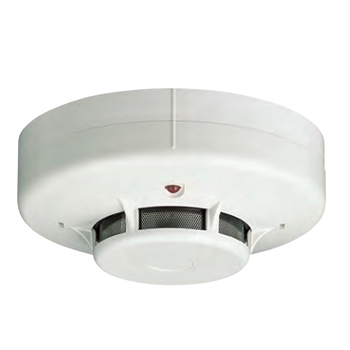

Đầu báo khói quang NOHMI FDK246

Đầu báo khói quang NOHMI FDK246
– The FDK series photoelectric smoke detectors detect combustion product (smoke) generated by a fire, and transmit an alarm signal to the fire alarm control panel. The photoelectric smoke detector can detect a fire in an earlier stage than a heat detector. Generally, this detector is installed in the spaces such as basements, ordinary floors, corridors, staircases, elevator shafts.
– Small monitoring current of 45μA.
– 2-wire system.
– Alarm response lamp (LED).
– Simple mounting.
– Very easy maintenance.
– Very low profile.
– Conventional type.
Đặc tính kỹ thuật

Model

FDK246

Sensitivity

Ordinary type

Type

Ordinary

Response Lamp

LED (Red)

Rate Voltage and current

24VDC, 100mA

Allowable Range of voltage

15V to 30 VDC

Quiescent Current

Approx. 45μA

Allowable Range of Ambient Temperature

-10ºC ~ 50ºC

Material

Main body: ABS resin
Base: Polycarbonate resin

Weight

Approx. 120g
